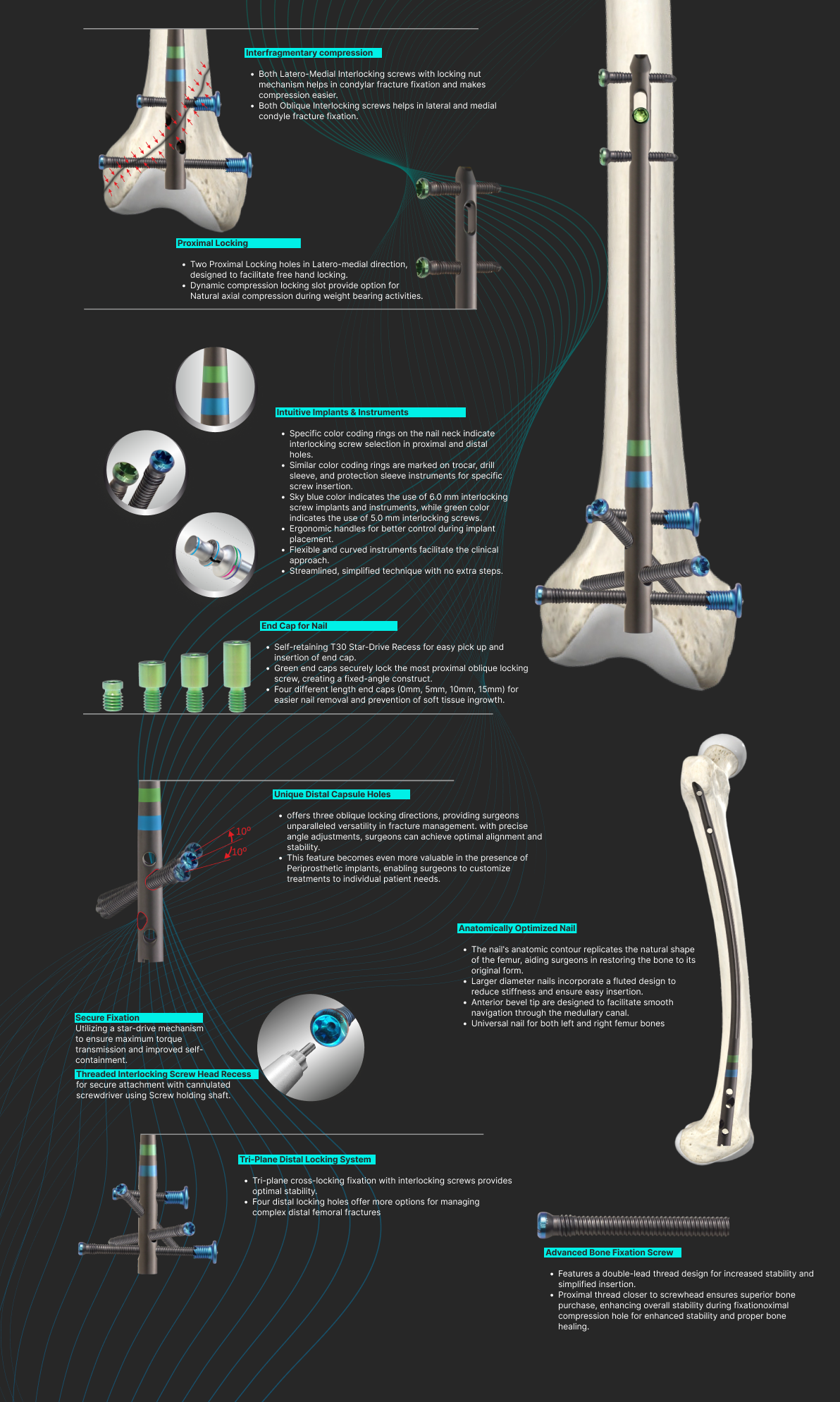

• Tri-plane cross-locking fixation with interlocking screws provides optimal stability
• Four distal locking holes offer more options for managing complex distal femoral fractures

Anatomically Optimized Nail

• The nail’s anatomic contour replicates the natural shape of the femur, aiding surgeons in restoring the bone to its original form
• Larger diameter nails incorporate a fluted design to reduce stiffness and ensure easy insertion
• Anterior bevel tips are designed to facilitate smooth navigation through the medullary canal.
• Universal nail for both left and right femur bones

Secure Fixation Utilizing a star-drive mechanism to ensure maximum torque transmission and improved self-containment.Threaded interlocking screw head recess for secure attachment with cannulated screwdriver using Screw holding shaft

Interfragmentary Compression

• Both latero-medial interlocking screws with locking nut mechanisms aid in condylar fracture fixation and facilitate easier compression
• Oblique interlocking screws are suitable for lateral and medial condyle fracture fixation

Proximal Locking

• Two proximal locking holes in the lateral-medial direction are designed to allow freehand locking.
• The dynamic compression locking slot provides an option for natural axial compression during weight-bearing activities.

Intuitive Implants & Instruments

• Specific colour-coded rings on the nail neck indicate interlocking screw selection for proximal and distal holes
• Similar colour-coded rings are marked on trocar, drill sleeve, and protection sleeve instruments for precise screw insertion
• Sky blue indicates the use of 6.0 mm interlocking screw implants and instruments, while green indicates the use of 5.0 mm interlocking screws
• Ergonomic handles provide better control during implant placement
• Flexible and curved instruments enhance the clinical approach
• A streamlined and simplified technique with no extra steps improves efficiency

End Cap for Nail

• Self-retaining T30 Star-Drive Recess allows easy pick-up and insertion of the end cap
• Green end caps securely lock the most proximal oblique locking screw, creating a fixed-angle construct
• Four different length end caps (0 mm, 5 mm, 10 mm, 15 mm) are available to facilitate nail removal and prevent soft tissue ingrowth

Unique Distal Capsule Holes

• Offers three oblique locking directions, providing surgeons with unparalleled versatility in fracture management. With precise angle adjustments, surgeons can achieve optimal alignment and stability
• This feature is especially valuable in the presence of periprosthetic implants, allowing surgeons to customise treatments to meet individual patient needs

Advanced Bone Fixation Screw

• Features a double-lead thread design for increased stability and simplified insertion
• The proximal thread, located closer to the screw head, ensures superior bone purchase, enhancing overall stability during fixation
• Includes a proximal compression hole for improved stability and accurate bone alignment healing
